Getting started

Parsing a single sentence

The parser can be used as an off-the-shelf parser using an existing grammar model, either one of the grammars used in publications for English, German, Dutch, and French, or a new model produced by discodop runexp or discodop grammar param (more on that below). To download and extract a grammar:

$ curl -Ssl https://staff.fnwi.uva.nl/a.w.vancranenburgh/grammars/en_ptb.tar | tar -xf -

To parse a single sentence:

$ echo 'Why did the chicken cross the road ?' | discodop parser en_ptb/
parsing 0: Why did the chicken cross the road ?
0.078917 s
(ROOT (SBARQ (SQ (VP (WHADVP (WRB 0=Why)) (VB 4=cross) (NP (DT 5=the) (NN 6=road))) (VBD 1=did) (NP (DT 2=the) (NN 3=chicken))) (. 7=?)))
average time per sentence 0.0789169999999999
unparsed sentences: 0
finished

We can add an extra command to visualize the tree:

$ echo 'Why did the chicken cross the road ?' | discodop parser en_ptb/ | discodop treedraw
[...]
1. (len=8):
                     ROOT
                      │
                    SBARQ
            ┌─────────┴────────────────────────┐
            SQ                                 │
        ┌───┴───┬─────┐                        │
        │       │     VP                       │
  ┌──── │ ───── │ ────┴──────┬────────┐        │
WHADVP  │       NP           │        NP       │
  │     │   ┌───┴─────┐      │    ┌───┴───┐    │
 WRB   VBD  DT        NN     VB   DT      NN   .
  │     │   │         │      │    │       │    │
 Why   did the     chicken cross the     road  ?

Parsing a text

Similarly we can parse a whole document. The text needs to be tokenized, for example using ucto, the output of which can be passed to the parser:

$ ucto -L en -n "CONRAD, Joseph - Lord Jim.txt" | discodop parser en_ptb/

To parse sentences from a treebank in bracketed format:

$ discodop treetransforms treebankExample.mrg --inputfmt=bracket --outputfmt=tokens | discodop parser en_ptb/

Inducing a simple grammar

Suppose we have the following treebank in the file treebankExample.mrg:

(S (NP (DT The) (NN cat)) (VP (VBP saw) (NP (DT the) (JJ hungry) (NN dog))))
(S (NP (DT The) (NN cat)) (VP (VBP saw) (NP (DT the) (NN dog))))
(S (NP (DT The) (NN mouse)) (VP (VBP saw) (NP (DT the) (NN cat))))
(S (NP (DT The) (NN mouse)) (VP (VBP saw) (NP (DT the) (JJ yellow) (NN cat))))
(S (NP (DT The) (JJ little) (NN mouse)) (VP (VBP saw) (NP (DT the) (NN cat))))
(S (NP (DT The) (NN cat)) (VP (VBP ate) (NP (DT the) (NN dog))))
(S (NP (DT The) (NN mouse)) (VP (VBP ate) (NP (DT the) (NN cat))))

You can view the trees using the following command:

$ discodop treedraw < treebankExample.mrg | less -R

Before inducing a grammar, we need to binarize the treebank:

$ discodop treetransforms --binarize --fmt=bracket treebankExample.mrg /tmp/bintrees
transformed 7 trees with action 'binarize'

We can then induce a Double-DOP grammar with the following command:

$ discodop grammar doubledop --inputfmt=bracket /tmp/bintrees /tmp/example
extracting recurring fragments
[...]
found 34 fragments
wrote backtransform to /tmp/example.backtransform
wrote grammar to /tmp/example.rules and /tmp/example.lex.
[...]

This produces a grammar consisting of a series of text files in /tmp, which can be used as follows:

$ echo 'The cat saw the hungry dog' | discodop parser --simple /tmp/example.rules /tmp/example.lex --bt=/tmp/example.backtransform -s S -b 5
parsing 0: The cat saw the hungry dog
(S (NP (DT 0) (NN 1)) (VP (VBP 2) (NP (DT 3) (NP|<JJ,NN> (JJ 4) (NN 5)))))
0.0 s
[...]

Note that the -s option should specify the root label of the trees in the treebank.

Run an experiment

To parse with large treebanks, it may be necessary to apply pruning, and it is useful to specify all the preprocessing steps and other configuration for an experiment in a single file. This can be done with the discodop runexp command.

To run an end-to-end experiment from grammar extraction to evaluation on a test set, make a copy of the file sample.prm and edit its parameters. For example:

stages=[
    dict(name='pcfg', mode='pcfg',
        split=True, markorigin=True),
    dict(name='plcfrs', mode='plcfrs',
        prune='pcfg', k=1000),
    dict(name='dop', mode='plcfrs',
        prune='plcfrs', k=50, m=1000,
        dop='doubledop', estimator='rfe', objective = 'mpp')
],
traincorpus=dict(
    path='alpinosample.export', encoding='utf-8',
    numsents=3, maxwords=100),
testcorpus=dict(
    path='alpinosample.export', encoding='utf-8',
    numsents=3, maxwords=100, skiptrain=False),
postagging=dict(
    method='unknownword', model='4',
    unknownthreshold=1, openclassthreshold=50,
    simplelexsmooth=True),
binarization=dict(
    method='default', factor='right',
    h=1, v=1),

See the documentation on the available parameters. This parameter file can be invoked by executing:

$ discodop runexp filename.prm

This will create a new directory with the base name of the parameter file, i.e., filename/ in this case. This directory must not exist yet, to avoid accidentally overwriting previous results. The directory will contain the grammar rules and lexicon in a text format, as well as the parsing results and the gold standard file in Negra’s export format.

screenshot of runexp showing a parse tree

Note that there is an option to utilize multiple processor cores by launching a specific number of processes. This greatly speeds up parsing, but note that for a nontrivial DOP grammar, each process may require anywhere from 4GB to 16GB.

Corpora can be read in Negra’s export format, or in the bracketed Penn treebank format. Access to the Negra corpus can be requested for non-commercial purposes, while the Tiger corpus is freely available for download for research purposes.

Alternatively, it is possible to achieve similar results with separate commands:

$ discodop grammar param filename.prm filename/
$ discodop alpinosample.export sentences.txt --inputfmt=export --outputfmt=tokens
$ discodop parser filename/ sentences.txt --fmt=export >filename/dop.export
$ discodop eval alpinosample.export filename/dop.export proper.prm

Overview

Command-line tools

Aside from the parser there are some standalone tools, invoked as discodop <cmd>:

fragments

Finds recurring or common fragments in one or more treebanks. It can be used with discontinuous as well as Penn-style bracketed treebanks. Example:

$ discodop fragments wsj-02-21.mrg > wsjfragments.txt

Specify the option --numproc n to use multiple processes, as with runexp.

eval

Discontinuous evaluation. Reports F-scores and other metrics. Accepts EVALB parameter files:

$ discodop eval sample/gold.export sample/dop.export proper.prm

treetransforms
A command line interface to perform transformations on treebanks such as binarization.
grammar
A command line interface to read off grammars from (binarized) treebanks.
treedraw

Visualize (discontinuous) trees. Command-line interface:

$ discodop treedraw < negra-corpus.export | less -RS

treesearch
Search through treebanks with queries.
parser
A basic command line interface to the parser comparable to bitpar. Reads grammars from text files.
demos
Contains examples of various formalisms encoded in LCFRS grammars.
gen
An experiment in generation with LCFRS.

For instructions, pass the --help option to a command or the links above.

Web interfaces

There are three web based tools in the web/ directory. These require some extra libraries such as Flask and pandas to be installed:

pip install --user -r web/requirements.txt
parse.py
A web interface to the parser. Expects a series of grammars in subdirectories of web/grammars/, each containing grammar files as produced by running discodop runexp. Download grammars for English, German, Dutch, and French, as used in a forthcoming paper.
treesearch.py
A web interface for searching through treebanks. Expects one or more treebanks in the directory web/corpus/ (sample included). See the treesearch manual for instructions on corpus preperation. To enable basic authentication, put a text file web/treesearchpasswd.txt with lines of the form username: password (see the example file, only use over HTTPS).
treedraw.py
A web interface for drawing discontinuous trees in various formats.

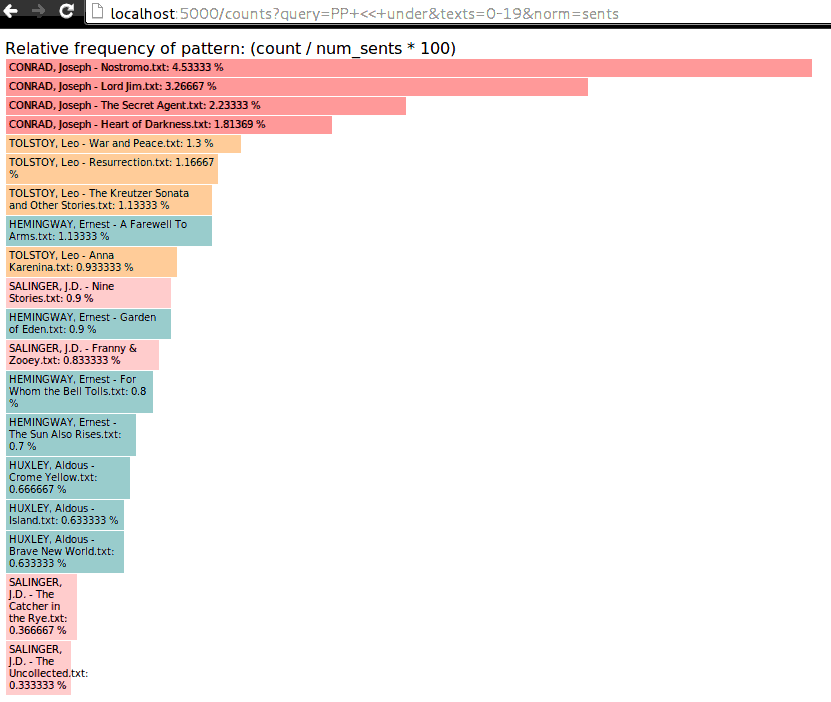

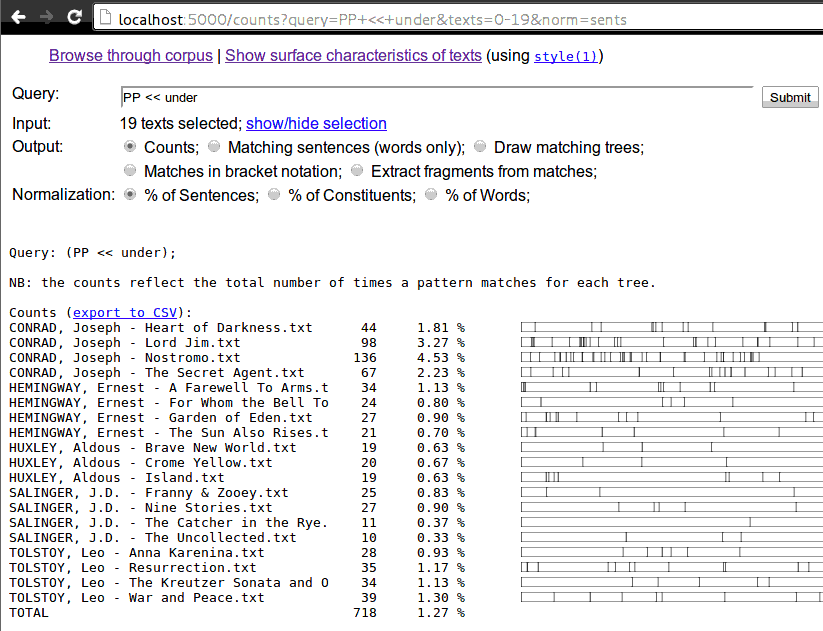

screenshot of treesearch showing counts of pattern screenshot of treesearch showing bar plot of pattern
